VDMR10.0

Standard 7-Segment SMD Display

VDMR10.0 Features

* Evenly lighted segments

* Grey package surface

* Untinted segments

* Luminous intensity categorized

* Yellow, green, and soft orange categorized for color

* Wide viewing angle

* Suitable for DC and high peak current

* Material categor

VDMR10.0 General Description

The VDM.10.0 series are 10 mm SMD seven segment LED displays in a very compact package. The devices utilize AlInGaP on GaAs chip technology. PRODUCT GROUP AND PACKAGE DATA

* Product group: Display

* Package: 10 mm

* Product series: SMD

* Angle of half intensity: ± 50°.

VDMR10.0 Datasheet (280.44 KB)

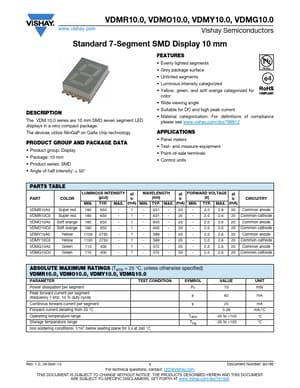

Preview of VDMR10.0 PDF

Datasheet Details

Part number:

VDMR10.0

Manufacturer:

Vishay ↗

File Size:

280.44 KB

Description:

Standard 7-segment smd display.
