VEML6030 - High Accuracy Ambient Light Sensor

Name: VEML6030
SKU: VEML6030-1103871

Vishay

📥 Download Datasheet

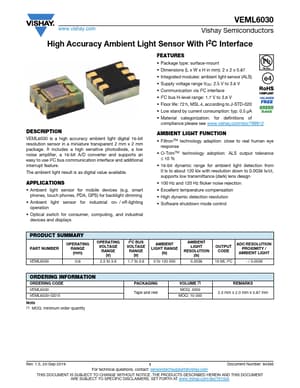

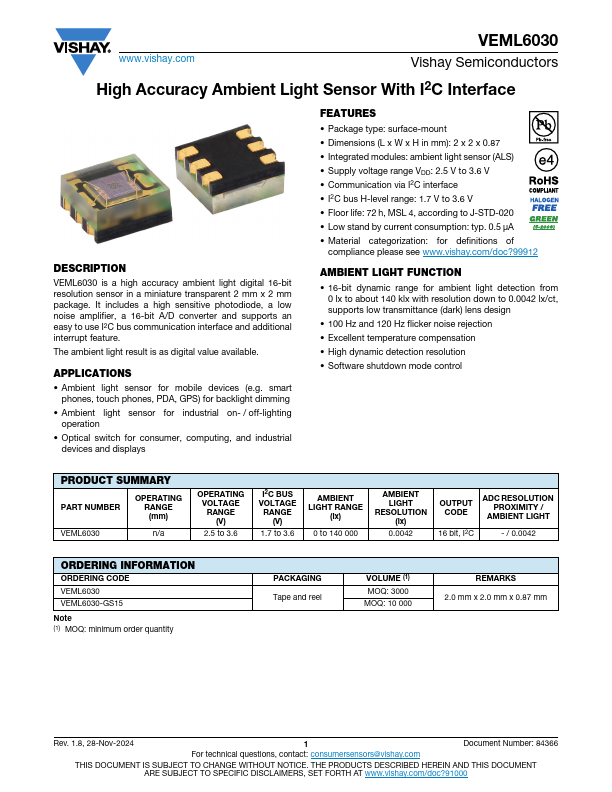

VEML6030 Datasheet Preview — Preview of VEML6030 PDF

Datasheet Details

Part number	VEML6030
Manufacturer	Vishay
File Size	276.81 KB
Description	High Accuracy Ambient Light Sensor
Datasheet	VEML6030-Vishay.pdf

VEML6030 Product details

Description

VEML6030 is a high accuracy ambient light digital 16-bit resolution sensor in a miniature transparent 2 mm x 2 mm package. Ambient light sensor for mobile devices (e.g. A

Features

Package type: surface-mount.
Dimensions (L x W x H in mm): 2 x 2 x 0.87.
Integrated modules: ambient light sensor (ALS).
Supply voltage range VDD: 2.5 V to 3.6 V.
Communication via I2C interface.
I2C bus H-level range: 1.7 V to 3.6 V.
Floor life: 72 h, MSL 4, according to J-STD-020.
Low stand by current consumption: typ. 0.5 μA.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99.
