VEMT2020X01, VEMT2000X01 - Silicon NPN Phototransistor

Vishay

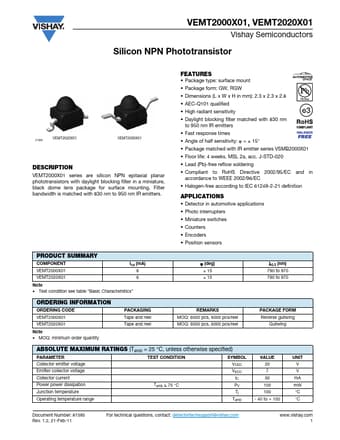

VEMT2020X01 Datasheet Preview — This datasheet PDF includes multiple part numbers: VEMT2020X01, VEMT2000X01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VEMT2020X01, VEMT2000X01
Manufacturer	Vishay ↗
File Size	200.29 KB
Description	Silicon NPN Phototransistor
Datasheet	VEMT2000X01_Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VEMT2020X01, VEMT2000X01. Please refer to the document for exact specifications by model.

VEMT2020X01 Product details

Description

VEMT2000X01 series are silicon NPN epitaxial planar phototransistors with daylight blocking filter in a miniature, black dome lens package for surface mounting. Detector in automotive applications Photo interrupters Miniature switches Counters Encoders Position sensors PRODUCT SUMMARY COMPONENT VEMT2000X01 VEMT2020X01 Note Test condition see table “B

Features

Package type: surface mount.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8.
AEC-Q101 qualified.
High radiant sensitivity.
Daylight blocking filter matched with 830 nm to 950 nm IR emitters.
Fast response times 21568 VEMT2020X01 VEMT2000X01.
Angle of half sensitivity:  = ± 15°.
Package matched with IR emitter series VSMB2000X01.
Floor life: 4 weeks, MSL 2a, acc. J-STD-020.
