VJ3640 Multilayer Ceramic Chip Capacitors

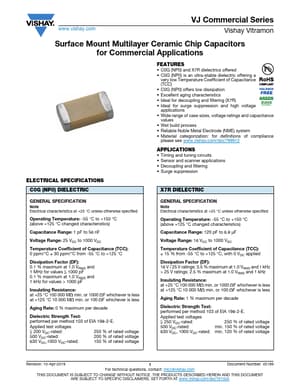

www.vishay.com VJ Commercial Series Vishay Vitramon Surface Mount Multilayer Ceramic Chip Capacitors for Commercial Applications ELECTRICAL SPECIFICATIONS C0G (NP0) DIELECTRIC  GENERAL SPECIFICATION Note  Electrical characteristics at +25 °C unless otherwise specified Operating Temperature: -55 °C to +150 °C (above +125 °C changed characteristics) Capacitance Range: 1 pF to 56 nF Voltage Range: 25 VDC to 1000 VDC Temperature Coefficient of Capacitance (TCC): 0 ppm/°C ± 30 ppm/°C from -.

VJ3640 Features

* C0G (NP0) and X7R dielectrics offered

* C0G (NP0) is an ultra-stable dielectric offering a very low Temperature Coefficient of Capacitance (TCC)

* C0G (NP0) offers low dissipation

* Excellent aging characteristics

* Ideal for decoupling and filtering (X7R)

VJ3640 Datasheet (160.87 KB)
