VLDK1235R, VLDS1235G, Dome Lens SMD LED

VLDS1235.., VLDR1235.., VLDK1235.., VLDY1235..www.vishay.com Vishay Semiconductors Dome Lens SMD LED VLD.1235R VLD.1235G .
The dome lens SMD LED series has been designed in a small untinted and clear molded package with lens for surface mounting as gullwing or reverse gull.

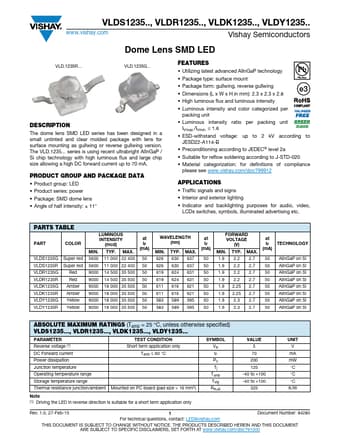

datasheet Preview Page 1 from Datasheet4u.com

VLDS1235G-Vishay.pdf

VLDK1235R Datasheet Preview — This datasheet PDF includes multiple part numbers: VLDK1235R, VLDS1235G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLDK1235R, VLDS1235G

Manufacturer:

Vishay ↗

File Size:

234.86 KB

Description:

Dome Lens SMD LED

Note:

This datasheet PDF includes multiple part numbers: VLDK1235R, VLDS1235G.
Please refer to the document for exact specifications by model.

Features

* Utilizing latest advanced AlInGaP technology
* Package type: surface mount
* Package form: gullwing, reverse gullwing
* Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8
* High luminous flux and luminous intensity
* Luminous intensity and color cat
