VLMB31J2K2-GS08 - Standard SMD LED PLCC-2

Download the VLMB31J2K2-GS08 datasheet PDF. This datasheet also covers the VLMB31J2L2-GS08 variant, as both devices belong to the same standard smd led plcc-2 family and are provided as variant models within a single manufacturer datasheet.

General Description

The package of the VLMB31..-series is the PLCC-2.

It consists of a lead frame which is embedded in a white thermoplast.

The reflector inside this package is filled up with clear epoxy.

Product group: LED Package: SMD PLCC-2 Product series:

Key Features

  • SMD LED with exceptional brightness.
  • Luminous intensity categorized.
  • Compatible with automatic placement equipment.
  • EIA and ICE standard package.
  • Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020.
  • Available in 8 mm tape.
  • Low profile package.
  • Non-diffused lens: excellent for coupling to light pipes and backlighting.
  • Low power consumption.
  • Lumino.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VLMB31J2L2-GS08-Vishay.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription for VLMB31J2K2-GS08 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for VLMB31J2K2-GS08. For precise diagrams, and layout, please refer to the original PDF.

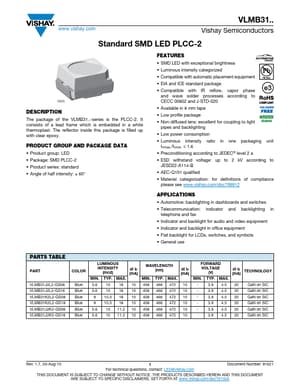

www.vishay.com VLMB31.. Vishay Semiconductors Standard SMD LED PLCC-2 19225 DESCRIPTION The package of the VLMB31..-series is the PLCC-2. It consists of a lead frame whic...

View more extracted text
of the VLMB31..-series is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy.
