VLMK20J2L2-GS08, VLMS2000-GS08 - Low Current Mini SMD LED

Vishay

📥 Download Datasheet

VLMK20J2L2-GS08 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMK20J2L2-GS08, VLMS2000-GS08. Please refer to the document for exact specifications by model.

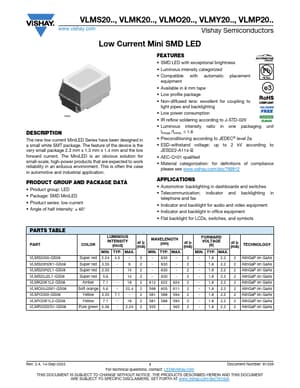

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VLMK20J2L2-GS08, VLMS2000-GS08
Manufacturer	Vishay ↗
File Size	342.75 KB
Description	Low Current Mini SMD LED
Datasheet	VLMS2000-GS08-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLMK20J2L2-GS08, VLMS2000-GS08. Please refer to the document for exact specifications by model.

VLMK20J2L2-GS08 Product details

Description

The new low current MiniLED Series have been designed in a small white SMT package. Product group: LED Package: SMD MiniLED Product

Features

SMD LED with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
IR reflow soldering according to J-STD-020.
Luminous intensity ratio in one packaging unit IVmax. /IVmin. ≤ 1.6.
Preconditioning according to JEDEC® le.
