VLMK23P2R1-GS08 - Power Mini SMD LED

Vishay

📥 Download Datasheet

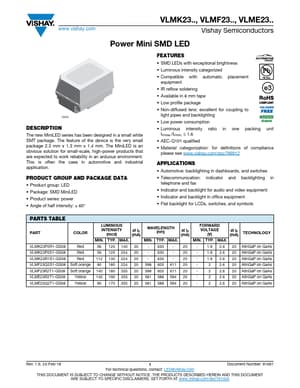

VLMK23P2R1-GS08 Datasheet Preview — Preview of VLMK23P2R1-GS08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VLMK23P2R1-GS08
Manufacturer	Vishay ↗
File Size	329.25 KB
Description	Power Mini SMD LED
Datasheet	VLMK23P2R1-GS08-Vishay.pdf

VLMK23P2R1-GS08 Product details

Description

The new MiniLED series has been designed in a small white SMT package. Product group: LED Package: SMD MiniLED Product series: power Angle of half in

Features

SMD LEDs with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
IR reflow soldering.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
Luminous intensity ratio in one packing unit IVmax. /IVmin. ≤ 1.6.
AEC-Q101 qu.
