VLMK322, VLMS322 - Power SMD LED

Vishay

📥 Download Datasheet

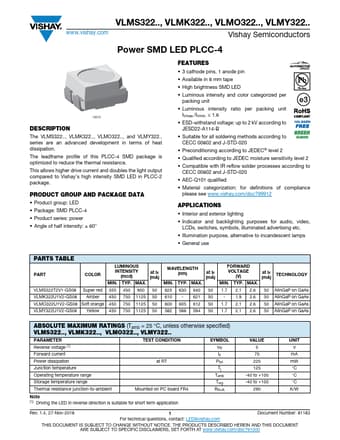

VLMK322 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMK322, VLMS322. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VLMK322, VLMS322
Manufacturer	Vishay ↗
File Size	244.27 KB
Description	Power SMD LED
Datasheet	VLMS322_Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLMK322, VLMS322. Please refer to the document for exact specifications by model.

VLMK322 Product details

Description

The VLMS322.., VLMK322.., VLMO322.., and VLMY322.. Product group: LED Package: SMD PLCC-4 Product series: power Angle of half intensity: ± 60°

Features

3 cathode pins, 1 anode pin.
Available in 8 mm tape.
High brightness SMD LED.
Luminous intensity and color categorized per packing unit.
Luminous intensity ratio per packing unit IVmax. /IVmin. ≤ 1.6.
ESD-withstand voltage: up to 2 kV according to JESD22-A114-B.
Suitable for all soldering methods according to CECC 00802 and J-STD-020.
Preconditioning according to JEDEC® level 2.
Qualified according to JEDEC moisture.
