VLMK33R1S2-GS08, VLMK33Q2T1-GS08 Datasheet - Vishay

VLMK33R1S2-GS08 Power SMD LED PLCC-2

The VLMK33.. series is an advanced modification of the Vishay VLMK31.. series. It is designed to incorporate larger chips, therefore, capable of withstanding a 50 mA drive current. The package of the VLMK33.. is the PLCC-2 (equivalent to a size B tantalum capacitor). It consists of a lead frame whic.

VLMK33R1S2-GS08 Features

* Available in 8 mm tape

* ESD-withstand voltage: up to 2 kV according to JESD22-A114-B

* Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020

* Preconditioning according to JEDEC® level 2a

* AEC-Q101 qualified

VLMK33Q2T1-GS08-Vishay.pdf

This datasheet PDF includes multiple part numbers: VLMK33R1S2-GS08, VLMK33Q2T1-GS08. Please refer to the document for exact specifications by model.

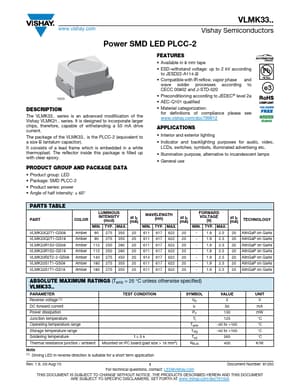

VLMK33R1S2-GS08 Datasheet Preview Page 2 VLMK33R1S2-GS08 Datasheet Preview Page 3

Datasheet Details

Part number:

VLMK33R1S2-GS08, VLMK33Q2T1-GS08

Manufacturer:

Vishay ↗

File Size:

149.42 KB

Description:

Power smd led plcc-2.

Note:

This datasheet PDF includes multiple part numbers: VLMK33R1S2-GS08, VLMK33Q2T1-GS08.
Please refer to the document for exact specifications by model.
