VLMY233, VLMS233 Power Mini SMD LED

VLMY233 Description

VLMS233.., VLMR233.., VLMK233.., VLMO233.., VLMY233..www.vishay.com Vishay Semiconductors Power Mini SMD LED 19226 .
The new MiniLED series has been designed in a small white SMT package.

VLMY233 Features

* Utilizing latest advanced AlInGaP technology
* Available in 8 mm tape
* Luminous intensity and color categorized per packing unit
* Luminous intensity ratio per packing unit IVmax. /IVmin. ≤ 1.6
* ESD-withstand voltage: up to 2 kV according to JESD22-A114-B

VLMY233 Applications

* Traffic signals and signs
* Interior and exterior lighting
* Dashboard illumination
* Indicator and backlighting purposes for audio, video, LCDs switches, symbols, illuminated advertising etc. PARTS TABLE PART VLMS233T1V1-GS08 VLMR233T2V2-GS08 VLMK233U1AA-GS08 VLMO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VLMY233, VLMS233. Please refer to the document for exact specifications by model.

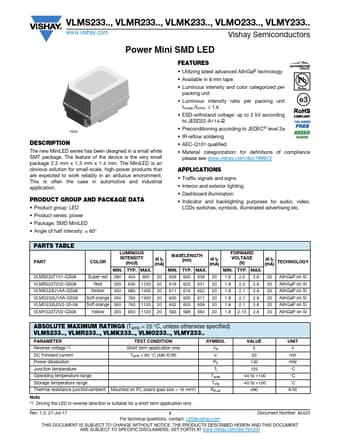

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VLMY233, VLMS233
Manufacturer
Vishay ↗
File Size
264.34 KB
Datasheet
VLMS233_Vishay.pdf
Description
Power Mini SMD LED
Note
This datasheet PDF includes multiple part numbers: VLMY233, VLMS233.
Please refer to the document for exact specifications by model.
