VLMY3100-GS08, VLMG310 Datasheet - Vishay

VLMY3100-GS08 - Standard SMD LED PLCC-2

These devices have been designed to meet the increasing demand for surface mounting technology.

The package of the VLM.310.

is the PLCC-2.

It consists of a lead frame which is embedded in a white thermoplast.

The reflector inside this package is filled up with clear epoxy.

PRODUCT GROUP AND PACKAGE

VLMY3100-GS08 Features

* SMD LEDs with exceptional brightness

* Luminous intensity categorized

* Compatible with automatic placement equipment

* EIA and ICE standard package

* Compatible with infrared, vapor phase and wave solder processes according to CECC 00802 and J-STD-020

VLMG310_VishaySiliconix.pdf

This datasheet PDF includes multiple part numbers: VLMY3100-GS08, VLMG310. Please refer to the document for exact specifications by model.

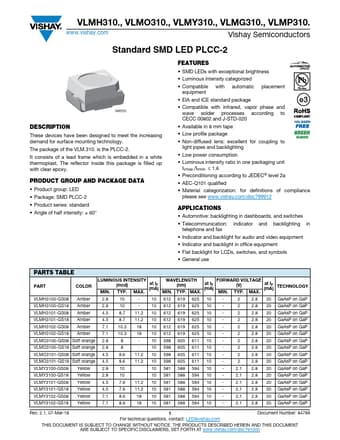

VLMY3100-GS08 Datasheet Preview Page 2 VLMY3100-GS08 Datasheet Preview Page 3

Datasheet Details

Part number:

VLMY3100-GS08, VLMG310

Manufacturer:

Vishay ↗

File Size:

226.20 KB

Description:

Standard smd led plcc-2.

Note:

This datasheet PDF includes multiple part numbers: VLMY3100-GS08, VLMG310.
Please refer to the document for exact specifications by model.
