VLMYG30H2K1-GS08, VLMPG30E1F2-GS08 Datasheet - Vishay

VLMYG30H2K1-GS08 Low Current SMD LED PLCC-2

This device has been designed to meet the increasing demand for AlInGaP technology. The package of the VLMPG30.., VLMYG30.. is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy. PRODUCT GROUP AND PACKAGE .

VLMYG30H2K1-GS08 Features

* SMD LED with exceptional brightness

* Luminous intensity and wavelength categorized

* Compatible with automatic placement equipment

* EIA and ICE standard package

* Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and

VLMPG30E1F2-GS08-Vishay.pdf

This datasheet PDF includes multiple part numbers: VLMYG30H2K1-GS08, VLMPG30E1F2-GS08. Please refer to the document for exact specifications by model.

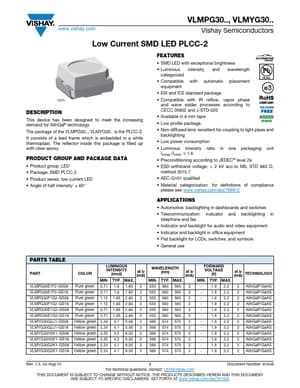

VLMYG30H2K1-GS08 Datasheet Preview Page 2 VLMYG30H2K1-GS08 Datasheet Preview Page 3

Datasheet Details

Part number:

VLMYG30H2K1-GS08, VLMPG30E1F2-GS08

Manufacturer:

Vishay ↗

File Size:

179.07 KB

Description:

Low current smd led plcc-2.

Note:

This datasheet PDF includes multiple part numbers: VLMYG30H2K1-GS08, VLMPG30E1F2-GS08.
Please refer to the document for exact specifications by model.
