VLMYG33P1Q2-GS18, VLMPG33N1P2 Datasheet - Vishay

VLMYG33P1Q2-GS18 Power SMD LED PLCC-2

The package of the VLM.G33.. is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy. PRODUCT GROUP AND PACKAGE DATA * Product group: LED * Package: SMD PLCC-2 * Product series: power.

VLMYG33P1Q2-GS18 Features

* SMD LED with exceptional brightness

* Luminous intensity categorized

* Compatible with automatic placement equipment e3

* EIA and ICE standard package

* Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-

VLMPG33N1P2-Vishay.pdf

This datasheet PDF includes multiple part numbers: VLMYG33P1Q2-GS18, VLMPG33N1P2. Please refer to the document for exact specifications by model.

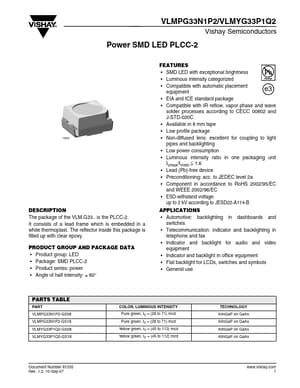

VLMYG33P1Q2-GS18 Datasheet Preview Page 2 VLMYG33P1Q2-GS18 Datasheet Preview Page 3

Datasheet Details

Part number:

VLMYG33P1Q2-GS18, VLMPG33N1P2

Manufacturer:

Vishay ↗

File Size:

183.89 KB

Description:

Power smd led plcc-2.

Note:

This datasheet PDF includes multiple part numbers: VLMYG33P1Q2-GS18, VLMPG33N1P2.
Please refer to the document for exact specifications by model.
