VLSL3212A2 - High Brightness LED Power Module

Vishay

📥 Download Datasheet

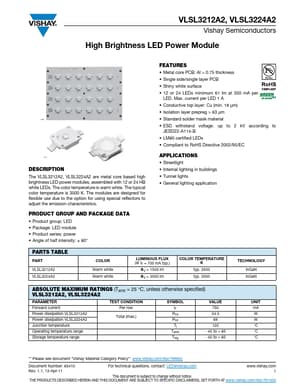

VLSL3212A2 Datasheet Preview — Preview of VLSL3212A2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VLSL3212A2
Manufacturer	Vishay ↗
File Size	187.70 KB
Description	High Brightness LED Power Module
Datasheet	VLSL3212A2-Vishay.pdf

VLSL3212A2 Product details

Description

The VLSL3212A2, VLSL3224A2 are metal core based high brightness LED power modules, assembled with 12 or 24 HB white LEDs.

Features

Metal core PCB: Al > 0.75 thickness.
Single side/single layer PCB.
Shiny white surface.
12 or 24 LEDs minimum 61 lm at 350 mA per LED. Max. current per LED 1 A.
Conductive top layer: Cu (min. 18 μm).
Isolation layer prepreg > 63 μm.
Standard solder mask material.
ESD withstand voltage: up to 2 kV according to JESD22-A114-B.
LM80 certified LEDs.
Compliant to RoHS Directive 2002/95/E.
