VOM452 Datasheet - Vishay

VOM452 Analog High-Speed Coupler

The VOM452 and VOM453, high speed optocouplers, each consists of a GaAlAs infrared emitting diode, optically coupled with an integrated photo detector and a high speed transistor. The photo detector is junction isolated from the transistor to reduce miller capacitance effects. The open collector out.

VOM452 Features

* Surface mountable

* Industry standard SOP-5 footprint

* Compatible with infrared vapor phase reflow and wave soldering processes

* Isolation test voltage, 3750 VRMS

* Very high common mode transient immunity: 15 000 V/Ξs at VCM = 1500 V guaranteed (VOM453)

VOM452 Datasheet (125.19 KB)

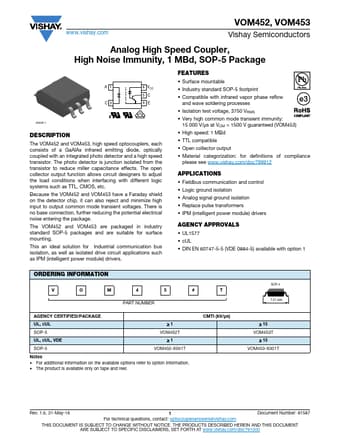

Preview of VOM452 PDF
VOM452 Datasheet Preview Page 2 VOM452 Datasheet Preview Page 3

Datasheet Details

Part number:

VOM452

Manufacturer:

Vishay ↗

File Size:

125.19 KB

Description:

Analog high-speed coupler.
