VS-10BQ030PbF Datasheet - Vishay

Schottky Rectifier

VS-10BQ030PbF Features

* Small foot print, surface mountable

* Very low forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

* Designed and qualified for i

VS-10BQ030PbF General Description

The VS-10BQ030PbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. .

VS-10BQ030PbF Datasheet (141.66 KB)

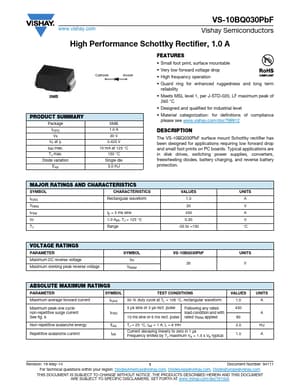

Preview of VS-10BQ030PbF PDF

Datasheet Details

Part number:

VS-10BQ030PbF

Manufacturer:

Vishay ↗

File Size:

141.66 KB

Description:

Schottky rectifier.
www.vishay.com VS-10BQ030PbF Vishay Semiconductors High Performance Schottky Rectifier, 1.0 A Cathode Anode SMB PRODUCT SUMMARY Package IF(AV) V.
