VS-10BQ100-M3 Datasheet - Vishay

High Performance Schottky Rectifier

VS-10BQ100-M3 Features

* Low forward voltage drop

* Guard ring for enhanced ruggedness and long term reliability

* Small foot print, surface mountable

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

* Material categorization: for defi

VS-10BQ100-M3 General Description

The VS-10BQ100-M3 surface-mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protecti.

VS-10BQ100-M3 Datasheet (115.97 KB)

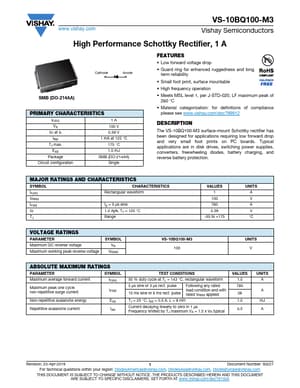

Preview of VS-10BQ100-M3 PDF

Datasheet Details

Part number:

VS-10BQ100-M3

Manufacturer:

Vishay ↗

File Size:

115.97 KB

Description:

High performance schottky rectifier.
www.vishay.com VS-10BQ100-M3 Vishay Semiconductors High Performance Schottky Rectifier, 1 A Cathode Anode SMB (DO-214AA) PRIMARY CHARACTERISTICS.
