VS-10CWH02FN-M3 Hyperfast Rectifier

VS-10CWH02FN-M3 Description

www.vishay.com VS-10CWH02FN-M3 Vishay Semiconductors Hyperfast Rectifier, 2 x 5 A FRED Pt® TO-252AA (D-PAK) Base common cathode 2 12 Anode Comm.
/ APPLICATIONS State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, an.

VS-10CWH02FN-M3 Features

* Hyperfast recovery time
* 175 °C max. operating junction temperature
* Output rectification freewheeling
* Low forward voltage drop reduced Qrr and soft recovery
* Low leakage current
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

VS-10CWH02FN-M3 Applications

* State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery.  The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability charac

📥 Download Datasheet

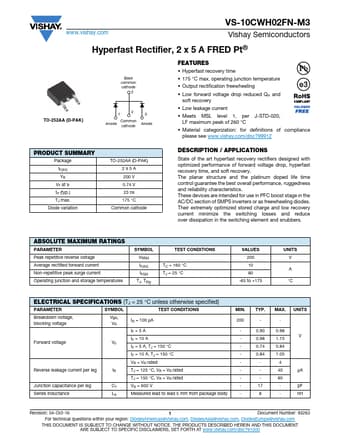

Preview of VS-10CWH02FN-M3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
