VS-10ETF12S-M3 Surface Mount Fast Soft Recovery Rectifier Diode

The VS-10ETF..S-M3 fast soft recovery rectifier series has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation ensures stable reliable operation in the most severe temperature and power cycling conditions. MAJOR RATINGS AND CHARACTERISTICS SY.

VS-10ETF12S-M3 Features

* Glass passivated pellet chip junction

* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C

* Designed and qualified according to JEDEC®-JESD 47

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

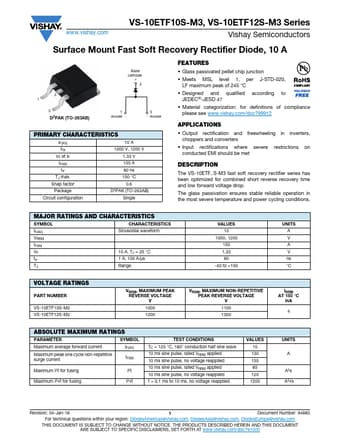

VS-10ETF10S-M3-Vishay.pdf

VS-10ETF12S-M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-10ETF12S-M3, VS-10ETF10S-M3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-10ETF12S-M3, VS-10ETF10S-M3

Manufacturer:

Vishay ↗

File Size:

242.41 KB

Description:

Surface mount fast soft recovery rectifier diode.

Note:

This datasheet PDF includes multiple part numbers: VS-10ETF12S-M3, VS-10ETF10S-M3.
Please refer to the document for exact specifications by model.
