VS-10ETS08S-M3 Datasheet, Diode, Vishay

VS-10ETS08S-M3 Features

  • Diode
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
  • Glass passivated pellet chip junction
  • Designed and qualified according to JEDEC®-JESD 47
  • <

PDF File Details

Part number:

VS-10ETS08S-M3

Manufacturer:

Vishay ↗

File Size:

185.68kb

Download:

📄 Datasheet

Description:

High voltage surface mount input rectifier diode. The VS-10ETS..S-M3 rectifier series has been optimized for very low forward voltage drop, with moderate leakage. The glass passivatio

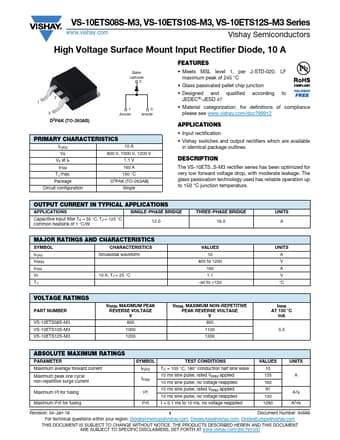

Datasheet Preview: VS-10ETS08S-M3 📥 Download PDF (185.68kb)
Page 2 of VS-10ETS08S-M3 Page 3 of VS-10ETS08S-M3

VS-10ETS08S-M3 Application

  • Applications
  • Input rectification
  • Vishay switches and output rectifiers which are available in identical package outlines DESCRIP
