VS-111CNQ045APbF Schottky Rectifier

VS-111CNQ045APbF Description

VS-111CNQ045A PbF Series Vishay High Power Products Schottky Rectifier New Generation 3 D-61 Package, 2 x 55 A VS-111CNQ045APbF D-61-8 VS-111CNQ045A.
The center tap Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage.

VS-111CNQ045APbF Features

* 175 °C TJ operation
* Center tap module
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and l

VS-111CNQ045APbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 55 Apk, TJ = 125 °C (per leg) Range VALUES 110 45 4000 0.55 - 55 to 175 UNITS A

📥 Download Datasheet

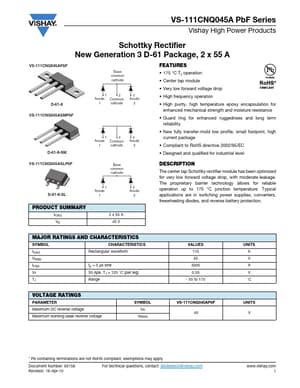

Preview of VS-111CNQ045APbF PDF
datasheet Preview Page 2 datasheet Preview Page 3
