VS-11DQ04-M3, VS-11DQ03 Schottky Rectifier

VS-11DQ04-M3 Description

VS-11DQ03, VS-11DQ03-M3, VS-11DQ04, VS-11DQ04-M3 www.vishay.com Vishay Semiconductors Schottky Rectifier, 1.1 A Cathode Anode DO-204AL PRODUCT .
The VS-11DQ axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-11DQ04-M3 Features

* Low profile, axial leaded outline
* High frequency operation
* Very low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term relia

VS-11DQ04-M3 Applications

* are in switching power supplies, converters, freewheeling diodes, and revers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-11DQ04-M3, VS-11DQ03. Please refer to the document for exact specifications by model.

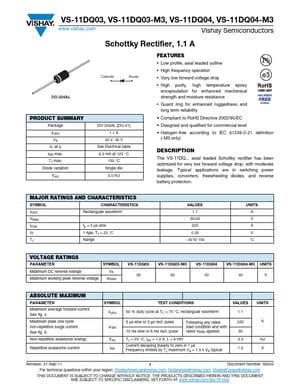

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-11DQ04-M3, VS-11DQ03
Manufacturer
Vishay ↗
File Size
110.97 KB
Datasheet
VS-11DQ03-Vishay.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-11DQ04-M3, VS-11DQ03.
Please refer to the document for exact specifications by model.
