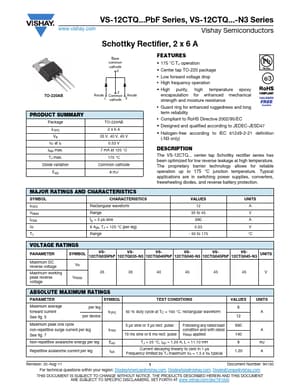

datasheet Preview Page 1 from Datasheet4u.com

VS-12CTQ035PbF Schottky Rectifier

VS-12CTQPbF Series, VS-12CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 6 A Base common cathode 2 TO-220AB 2 Anode C.
The VS-12CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-12CTQ035PbF-Vishay.pdf

VS-12CTQ035PbF Datasheet Preview — Preview of VS-12CTQ035PbF PDF

Datasheet Details

Part number:

VS-12CTQ035PbF

Manufacturer:

Vishay ↗

File Size:

163.85 KB

Description:

Schottky Rectifier

Features

* 175 °C TJ operation
* Center tap TO-220 package
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness an

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. VALUES 12 35 to 45 690 0.53 - 55 to 175 UNITS A V A V °C VOLTAGE RATINGS PARAMETER SYMBOL VS12CTQ035PbF VS12CTQ035-N3 VS12CTQ040PbF VS12CTQ040-N3 VS12CTQ045PbF VS12CTQ045-N3 UNITS Maximum D
