VS-12F120, VS-12F10, Standard Recovery Diodes

www.vishay.com VS-12F(R) Series Vishay Semiconductors Standard Recovery Diodes, (Stud Version), 12 A DO-4 (DO-203AA) PRIMARY CHARACTERISTICS IF(A.

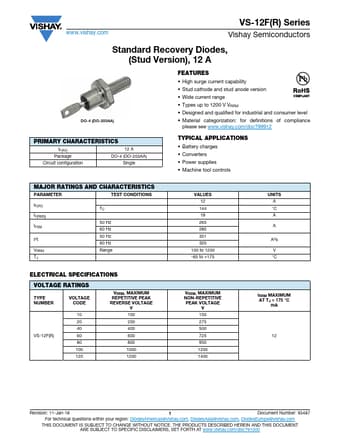

datasheet Preview Page 1 from Datasheet4u.com

VS-12F10-Vishay.pdf

VS-12F120 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-12F120, VS-12F10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-12F120, VS-12F10

Manufacturer:

Vishay ↗

File Size:

156.64 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-12F120, VS-12F10.
Please refer to the document for exact specifications by model.

Features

* High surge current capability
* Stud cathode and stud anode version
* Wide current range
* Types up to 1200 V VRRM
* Designed and qualified for industrial and consumer level
* Material categorization: for definitions of compliance please see www. vish

Applications

* Battery charges
* Converters
* Power supplies
* Machine tool controls MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 12 144 19 265 280 351 320 100 to 1200 -65 to +175 UNITS A
