VS-12FLR20S02, VS-6FL, Fast Recovery Diodes

www.vishay.com VS-6FL(R), VS-12FL(R), VS-16FL(R) Series Vishay Semiconductors Fast Recovery Diodes (Stud Version), 6 A, 12 A, 16 A DO-203AA (DO-4) .

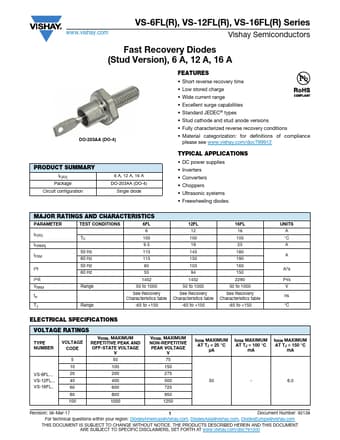

datasheet Preview Page 1 from Datasheet4u.com

VS-6FL-Vishay.pdf

VS-12FLR20S02 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-12FLR20S02, VS-6FL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-12FLR20S02, VS-6FL

Manufacturer:

Vishay ↗

File Size:

186.92 KB

Description:

Fast Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-12FLR20S02, VS-6FL.
Please refer to the document for exact specifications by model.

Features

* Short reverse recovery time
* Low stored charge
* Wide current range
* Excellent surge capabilities
* Standard JEDEC® types
* Stud cathode and stud anode versions
* Fully characterized reverse recovery conditions
* Material categoriza

Applications

* DC power supplies
* Inverters
* Converters
* Choppers
* Ultrasonic systems
* Freewheeling diodes MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS 6FL IF(AV) IF(RMS) IFSM TC 50 Hz 60 Hz 6 100 9.5 110 115 50 Hz I2t 60 Hz I2t 60 55
