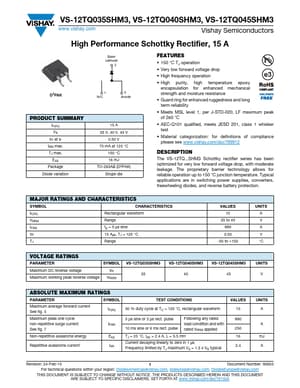

VS-12TQ040SHM3, VS-12TQ035SHM3 High Performance Schottky Rectifier

VS-12TQ035SHM3, VS-12TQ040SHM3, VS-12TQ045SHM3 www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 15 A Base cathode 2 D2PA.
The VS-12TQSHM3 Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

VS-12TQ035SHM3-Vishay.pdf

VS-12TQ040SHM3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-12TQ040SHM3, VS-12TQ035SHM3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-12TQ040SHM3, VS-12TQ035SHM3

Manufacturer:

Vishay ↗

File Size:

152.13 KB

Description:

High Performance Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-12TQ040SHM3, VS-12TQ035SHM3.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform Range tp = 5 μs sine VF 15 Apk, TJ = 125 °C TJ Range VALUES 15 35 to 45 990 0.50 -55 to +150 UNITS
