VS-16EDH02-M3 Datasheet - Vishay

Hyperfast Rectifier

VS-16EDH02-M3 Features

* Hyperfast recovery time, reduced Qrr, and soft recovery

* 175 °C maximum operating junction temperature

* Specified for output and snubber operation

* Low forward voltage drop

* Low leakage current

* Meets MSL level 1, per J-STD-020, LF maximum peak

VS-16EDH02-M3 General Description

/ APPLICATIONS State of the art hyperfast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyperfast recovery time. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness, and reliability charac.

VS-16EDH02-M3 Datasheet (136.27 KB)

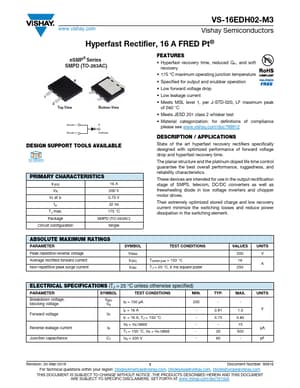

Preview of VS-16EDH02-M3 PDF

Datasheet Details

Part number:

VS-16EDH02-M3

Manufacturer:

Vishay ↗

File Size:

136.27 KB

Description:

Hyperfast rectifier.
www.vishay.com VS-16EDH02-M3 Vishay Semiconductors Hyperfast Rectifier, 16 A FRED Pt® eSMP® Series SMPD (TO-263AC) K 1 2 Top View Bottom View An.
