VS-175BGQ045 Datasheet - Vishay

Schottky Rectifier

VS-175BGQ045 Features

* 150 °C max. operating junction temperature

* High frequency operation

* Ultralow forward voltage drop

* Continuous high current operation

* Guard ring for enhanced ruggedness and long term reliability

* Screw mounting only

* Designed and qual

VS-175BGQ045 General Description

The VS-175BGQ045 Schottky rectifier has been optimized for ultralow forward voltage drop specifically for low voltage output in high current AC/DC power supplies. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching.

VS-175BGQ045 Datasheet (132.22 KB)

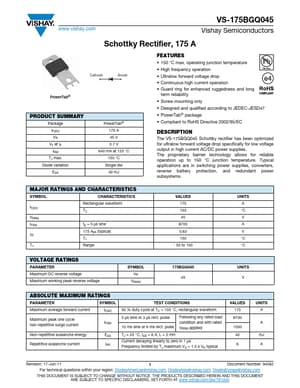

Preview of VS-175BGQ045 PDF

Datasheet Details

Part number:

VS-175BGQ045

Manufacturer:

Vishay ↗

File Size:

132.22 KB

Description:

Schottky rectifier.
www.vishay.com VS-175BGQ045 Vishay Semiconductors Schottky Rectifier, 175 A Cathode Anode PowerTab® PRODUCT SUMMARY Package IF(AV) VR VF at IF I.
