VS-20CTQ040-1-M3 High Performance Schottky Rectifier

The VS-20CTQ center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes,.

www.vishay.com VS-20CTQS-M3, VS-20CTQ-1-M3 Series Vishay Semiconductors High Performance Schottky Rectifier, 2 x 10 A 2 1 3 1 2 D2PAK (TO-263AB) 3 Base common cathode 2 TO-262AA Base common cathode 2 2 1 Common 3 Anode cathode Anode VS-20CTQS-M3 2 1 Common 3 Anode cathode Anode VS-20CTQ-1-M3 PRIMARY CHARACTERISTICS IF(AV) VR VF at IF IRM TJ max. EAS Package 2 x 10 A 35 V, 40 V, 45 V 0.57 V 15 mA at 125 °C 175 °C 13 mJ D2PAK (TO-263AB), TO-262AA Circuit configuration Common catho.

VS-20CTQ040-1-M3 Features

* 175 °C TJ operation

* Center tap configuration

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and

VS-20CTQ035S-M3-Vishay.pdf

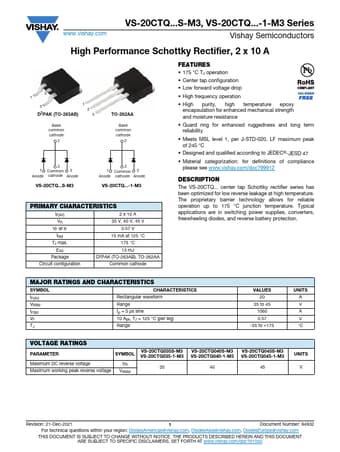

VS-20CTQ040-1-M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-20CTQ040-1-M3, VS-20CTQ035S-M3. Please refer to the document for exact specifications by model.
