VS-20CTQ045HN3, VS-20CTQ035HN3 High Performance Schottky Rectifier

VS-20CTQ045HN3 Description

www.vishay.com VS-20CTQHN3 Series Vishay Semiconductors High Performance Schottky Rectifier, 2 x 10 A Base 2 common cathode TO-220AB Anode 2 Ano.
The VS-20CTQHN3 Series center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

VS-20CTQ045HN3 Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* AE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-20CTQ045HN3, VS-20CTQ035HN3. Please refer to the document for exact specifications by model.

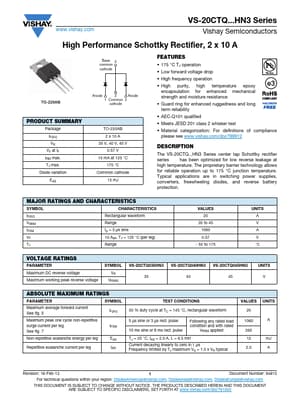

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-20CTQ045HN3, VS-20CTQ035HN3
Manufacturer
Vishay ↗
File Size
174.97 KB
Datasheet
VS-20CTQ035HN3-Vishay.pdf
Description
High Performance Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-20CTQ045HN3, VS-20CTQ035HN3.
Please refer to the document for exact specifications by model.
