VS-20CTQ150SPbF High Performance Schottky Rectifier

VS-20CTQ150SPbF Description

www.vishay.com VS-20CTQ150SPbF, VS-20CTQ150-1PbF Vishay Semiconductors High Performance Schottky Rectifier, 2 x 10 A TO-263AB (D2PAK) TO-262AA Ba.
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

VS-20CTQ150SPbF Features

* 175 °C TJ operation
* Center tap configuration
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and

VS-20CTQ150SPbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.   MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 10 Apk, TJ = 125 °C (per leg) Range VALUES 20 150 1030 0.66 -55 to +175 VOLT

📥 Download Datasheet

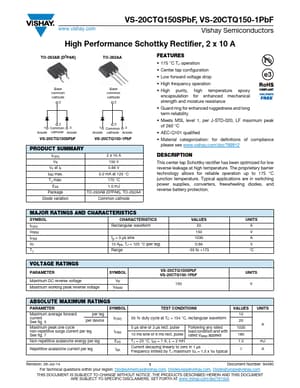

Preview of VS-20CTQ150SPbF PDF
