VS-25CTQ035-N3, VS-25CTQ035PbF, Schottky Rectifier

VS-25CTQPbF Series, VS-25CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cathode TO-220AB Anode 2.
The VS-25CTQ center tap Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

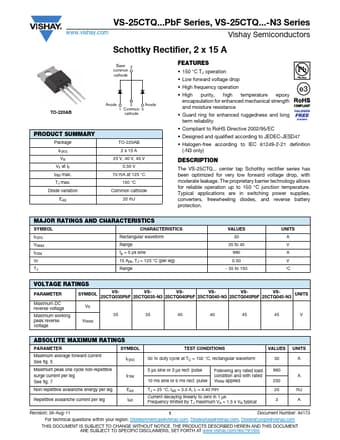

datasheet Preview Page 1 from Datasheet4u.com

VS-25CTQ035PbF-Vishay.pdf

VS-25CTQ035-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-25CTQ035-N3, VS-25CTQ035PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-25CTQ035-N3, VS-25CTQ035PbF

Manufacturer:

Vishay ↗

File Size:

164.28 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-25CTQ035-N3, VS-25CTQ035PbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform Range tp = 5 μs sine VF 15 Apk, TJ = 125 °C (per leg) TJ Range VALUES 30 35 to 45 990 0.50 - 55 to
