VS-25F40, VS-25F10, Standard Recovery Diodes

www.vishay.com VS-25F(R) Series Vishay Semiconductors Standard Recovery Diodes (Stud Version), 25 A DO-203AA (DO-4) PRODUCT SUMMARY IF(AV) Package.

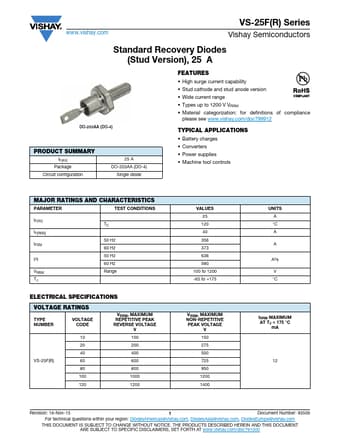

datasheet Preview Page 1 from Datasheet4u.com

VS-25F10-Vishay.pdf

VS-25F40 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-25F40, VS-25F10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-25F40, VS-25F10

Manufacturer:

Vishay ↗

File Size:

158.37 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-25F40, VS-25F10.
Please refer to the document for exact specifications by model.

Features

* High surge current capability
* Stud cathode and stud anode version
* Wide current range
* Types up to 1200 V VRRM

Applications

* Battery charges
* Converters
* Power supplies
* Machine tool controls   MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range ELECTRICAL SPECIFICATIONS VOLTAGE RATINGS TYPE NUMBER VO
