VS-25RIA100, VS-25RIA10 Medium Power Phase Control Thyristors

VS-25RIA100 Description

www.vishay.com VS-25RIA Series Vishay Semiconductors Medium Power Phase Control Thyristors (Stud Version), 25 A TO-48 (TO-208AA) PRIMARY CHARACTER.

VS-25RIA100 Features

* Improved glass passivation for high reliability and exceptional stability at high temperature
* High dI/dt and dV/dt capabilities
* Standard package
* Low thermal resistance
* Metric threads version available
* Types up to 1200 V VDRM/VRRM

VS-25RIA100 Applications

* Medium power switching
* Phase control applications   MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IT(AV) IT(RMS) ITSM I2t VDRM/VRRM tq TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Typical VALUES 25 85 40 420 440 867 790 100 to 1200 110 -65 to +125 UNITS A °C A A A2s V μs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-25RIA100, VS-25RIA10. Please refer to the document for exact specifications by model.

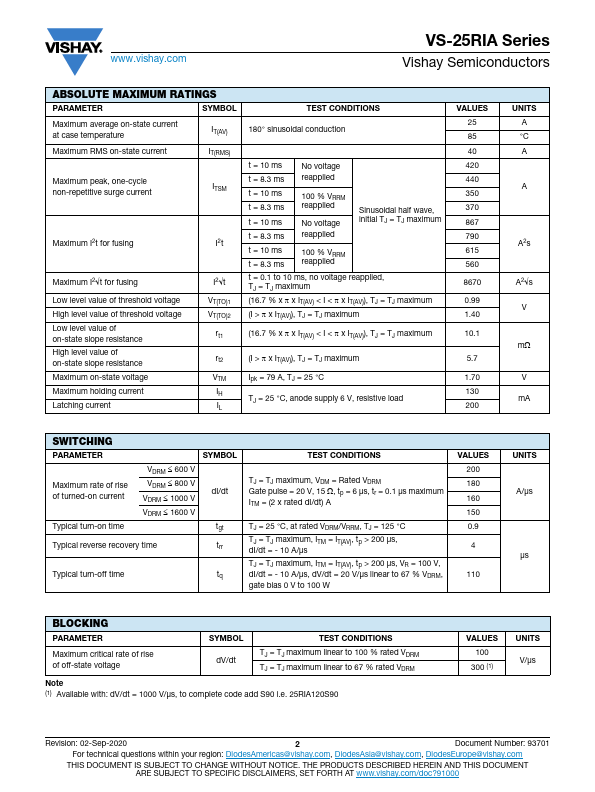

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-25RIA100, VS-25RIA10
Manufacturer
Vishay ↗
File Size
184.78 KB
Datasheet
VS-25RIA10-Vishay.pdf
Description
Medium Power Phase Control Thyristors
Note
This datasheet PDF includes multiple part numbers: VS-25RIA100, VS-25RIA10.
Please refer to the document for exact specifications by model.
