* Designed and qualified according to JEDEC-JESD47
* 125 °C max. operating junction temperature
* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS Available
* Typical usage is in input rectification crowbar (s

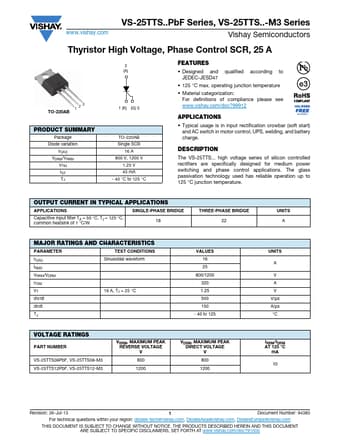

VS-25TTS12PbF Datasheet (142.36 KB)
VS-25TTS12PbF
142.36 KB
Phase control scr.
VS-25TTS..PbF Series, VS-25TTS..-M3 Series
www.vishay.com
Vishay Semiconductors
Thyristor High Voltage, Phase Control SCR, 25 A
2 (A)
1 23 TO-220.
📁 Related Datasheet
VS-25TTS12-M3 - Phase Control SCR
(Vishay)
.vishay.
VS-25TTS08-M3, VS-25TTS12-M3
Vishay Semiconductors
Thyristor High Voltage, Phase Control SCR, 25 A
2 (A)
1 2 3
TO-220AB 3L
1 (K) .
VS-25TTS12FP-M3 - Phase Control SCR
(Vishay)
.vishay.
VS-25TTS08FP-M3, VS-25TTS12FP-M3
Vishay Semiconductors
Thyristor High Voltage, Phase Control SCR, 25 A
2 (A)
1 2 3
TO-220 FullPAK 3.
VS-25TTS12HM3 - Phase Control SCR
(Vishay)
.vishay.
VS-25TTS12HM3
Vishay Semiconductors
Thyristor High Voltage, Phase Control SCR, 25 A
2 (A)
1 23 TO-220AB
1 (K) (G) 3
PRIMARY CHARA.
VS-25TTS12S-M3 - Phase Control SCR
(Vishay)
.vishay.
VS-25TTS08S-M3, VS-25TTS12S-M3 Series
Vishay Semiconductors
Thyristor, Surface Mount, Phase Control SCR, 16 A
Anode 2, 4
2 1
3 D2PA.
VS-25TTS12SPbF - Thyristor
(Vishay)
.vishay.
VS-25TTS SPbF Series
Vishay Semiconductors
Thyristor, Surface Mount, Phase Control SCR, 16 A
Anode 2
2
3
1 TO-263AB (D2PAK)
13 C.
VS-25TTS16S2L-M3 - Phase Control SCR
(Vishay)
.vishay.
VS-25TTS16S2L-M3
Vishay Semiconductors
Thyristor Surface-Mount, Phase Control SCR, 16 A
Anode 2
4
D2PAK 2L (TO-263AB 2L)
13 Cathod.
VS-25TTS16SPbF - Phase Control SCR
(Vishay)
.vishay.
VS-25TTS16SPbF
Vishay Semiconductors
Thyristor Surface Mount, Phase Control SCR, 16 A
4 Anode 2, 4
2
3
1 TO-263AB (D2PAK)
13 Catho.
VS-25TTS08-M3 - Phase Control SCR
(Vishay)
.vishay.
VS-25TTS08-M3, VS-25TTS12-M3
Vishay Semiconductors
Thyristor High Voltage, Phase Control SCR, 25 A
2 (A)
1 2 3
TO-220AB 3L
1 (K) .
