VS-300MT160C, Three Phase Bridge

www.vishay.com VS-300MTC Series Vishay Semiconductors Three Phase Bridge, 300 A (Power Modules) MTC PRODUCT SUMMARY IO VRRM Package Circuit 300 A.
A range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation.

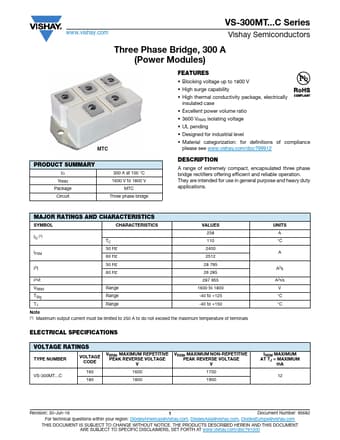

datasheet Preview Page 1 from Datasheet4u.com

VS-300MT160C-Vishay.pdf

VS-300MT160C Datasheet Preview — Preview of VS-300MT160C PDF

Datasheet Details

Part number:

VS-300MT160C

Manufacturer:

Vishay ↗

File Size:

162.17 KB

Description:

Three Phase Bridge

Features

* Blocking voltage up to 1800 V
* High surge capability
* High thermal conductivity package, electrically insulated case
* Excellent power volume ratio
* 3600 VRMS isolating voltage
* UL pending
* Designed for industrial level
* Materia

Applications

* MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS VALUES IO (1) IFSM TC 50 Hz 60 Hz 258 110 2400 2512 50 Hz I2t 60 Hz 28 795 26 285 I2t 287 955 VRRM TStg TJ Range Range Range 1600 to 1800 -40 to +125 -40 to +150 Note (1)
