VS-30CTQ045-N3 Schottky Rectifier

The VS-30CTQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling d.

VS-30CTQ045-N3 Features

* 175 °C TJ operation

* Very low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and long term reliability

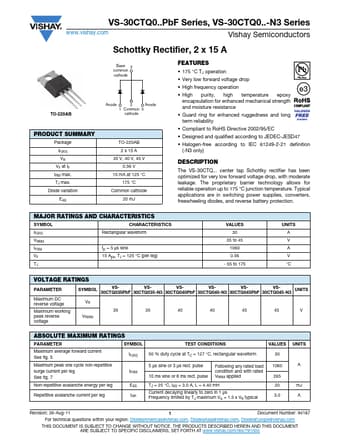

VS-30CTQ035PbF-Vishay.pdf

VS-30CTQ045-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-30CTQ045-N3, VS-30CTQ035PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-30CTQ045-N3, VS-30CTQ035PbF

Manufacturer:

Vishay ↗

File Size:

114.13 KB

Description:

Schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: VS-30CTQ045-N3, VS-30CTQ035PbF.
Please refer to the document for exact specifications by model.
