VS-30EPF10PbF

Fast Soft Recovery Rectifier Diode

VS-30EPF10PbF Features

* 150 °C max. operating junction temperature

* Low forward voltage drop and short reverse recovery time

* Designed and qualified according to JEDEC®-JESD47

* Material categorization:  For definitions of compliance please see www.vishay.com/doc?99912 Available APPLI

VS-30EPF10PbF General Description

The VS-30EPF1 and VS-30APF1 soft recovery rectifier series has been optimized for combined short reverse recovery time and low forward voltage drop. The glass passivation ensures stable reliable operation in the most severe temperature and power cycling conditions. MAJOR RATINGS AND CHARACTERISTICS.

VS-30EPF10PbF Datasheet (263.34 KB)

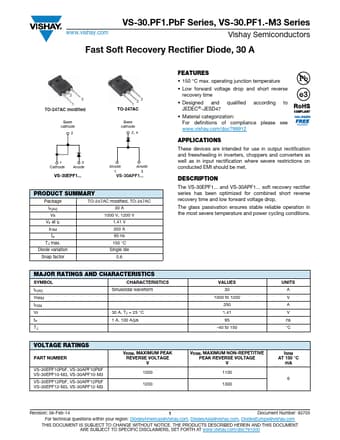

Preview of VS-30EPF10PbF PDF

Datasheet Details

Part number:

VS-30EPF10PbF

Manufacturer:

Vishay ↗

File Size:

263.34 KB

Description:

Fast soft recovery rectifier diode.
VS-30.PF1.PbF Series, VS-30.PF1.-M3 Series www.vishay.com Vishay Semiconductors Fast Soft Recovery Rectifier Diode, 30 A 2 3 1 TO-247AC modified B.
