VS-31DQ05 Schottky Rectifier

VS-31DQ05 Description

VS-31DQ05, VS-31DQ05-M3, VS-31DQ06, VS-31DQ06-M3 www.vishay.com Vishay Semiconductors Schottky Rectifier, 3.3 A C-16 Cathode Anode PRODUCT SUMM.
The VS-31DQ axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-31DQ05 Features

* Low profile, axial leaded outline
* High frequency operation
* Very low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term relia

VS-31DQ05 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 3 Apk, TJ = 25 °C VALUES 3.3 50/60 340 0.62 - 40 to 150 UNITS A V A V °C VOLTAG

📥 Download Datasheet

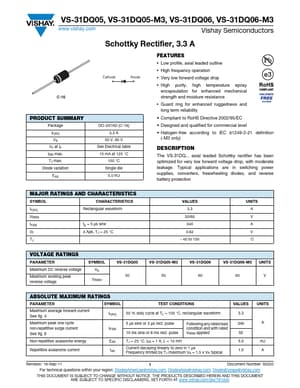

Preview of VS-31DQ05 PDF
datasheet Preview Page 2 datasheet Preview Page 3
