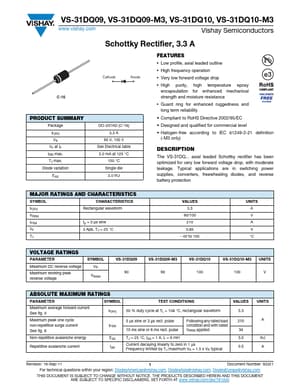

datasheet Preview Page 1 from Datasheet4u.com

VS-31DQ09-M3, VS-31DQ09 Schottky Rectifier

VS-31DQ09, VS-31DQ09-M3, VS-31DQ10, VS-31DQ10-M3 www.vishay.com Vishay Semiconductors Schottky Rectifier, 3.3 A C-16 Cathode Anode PRODUCT SUMM.
The VS-31DQ axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-31DQ09-Vishay.pdf

VS-31DQ09-M3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-31DQ09-M3, VS-31DQ09. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-31DQ09-M3, VS-31DQ09

Manufacturer:

Vishay ↗

File Size:

115.80 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-31DQ09-M3, VS-31DQ09.
Please refer to the document for exact specifications by model.

Features

* Low profile, axial leaded outline
* High frequency operation
* Very low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term relia

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 3 Apk, TJ = 25 °C VALUES 3.3 90/100 210 0.85 - 40 to 150 UNITS A V A V °C VOLTA
