VS-3EAH02HM3 - Ultrafast Rectifier

Vishay

📥 Download Datasheet

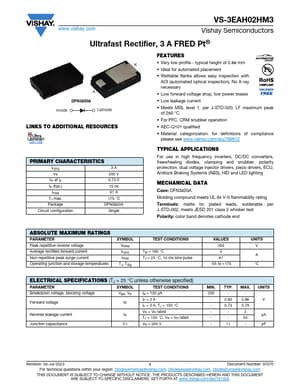

VS-3EAH02HM3 Datasheet Preview — Preview of VS-3EAH02HM3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VS-3EAH02HM3
Manufacturer	Vishay ↗
File Size	189.82 KB
Description	Ultrafast Rectifier
Datasheet	VS-3EAH02HM3-Vishay.pdf

VS-3EAH02HM3 Product details

Features

Very low profile - typical height of 0.88 mm.
Ideal for automated placement.
Wettable flanks allows easy inspection with AOI (automated optical inspection). No X-ray necessary.
Low forward voltage drop, low power losses.
Low leakage current.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
For PFC, CRM snubber operation.
AEC-Q101 qualified.
Material categorization: for definitions of compliance please s.
