VS-400CNQ045PbF High Performance Schottky Rectifiers

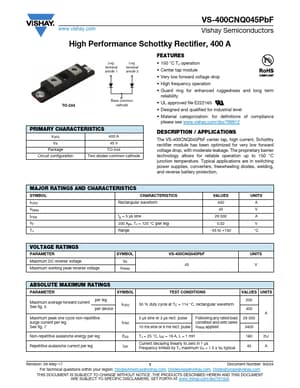

www.vishay.com VS-400CNQ045PbF Vishay Semiconductors High Performance Schottky Rectifier, 400 A Lug terminal anode 1 Lug terminal anode 2 TO-244 .
The VS-400CNQ045PbF center tap, high current, Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage.

VS-400CNQ045PbF-Vishay.pdf

VS-400CNQ045PbF Datasheet Preview — Preview of VS-400CNQ045PbF PDF

Datasheet Details

Part number:

VS-400CNQ045PbF

Manufacturer:

Vishay ↗

File Size:

145.60 KB

Description:

High Performance Schottky Rectifiers

Features

* 150 °C TJ operation
* Center tap module
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* UL approved file E222165
* Designed and qualified for industrial level

Applications

* are in switching power supplies, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 200 Apk, TJ = 125 °C (per leg) Range VALUES 400 45 29 000 0.52 -55 to 1
