VS-40HFL10S05, VS-40HFL Fast Recovery Diodes

VS-40HFL10S05 Description

www.vishay.com VS-40HFL, VS-70HFL, VS-85HFL Series Vishay Semiconductors Fast Recovery Diodes (Stud Version), 40 A, 70 A, 85 A DO-5 (DO-203AB) PRI.

VS-40HFL10S05 Features

* Short reverse recovery time
* Low stored charge
* Wide current range
* Excellent surge capabilities
* Stud cathode and stud anode versions
* Types up to 100 VRRM
* Material categorization: for definitions of compliance please see www. vishay. c

VS-40HFL10S05 Applications

* DC power supplies
* Inverters
* Converters
* Choppers
* Ultrasonic systems
* Freewheeling diodes MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS 40HFL IF(AV) IFSM TC maximum 50 Hz 60 Hz 40 85 400 420 50 Hz I2t 60 Hz I2t 800 730

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-40HFL10S05, VS-40HFL. Please refer to the document for exact specifications by model.

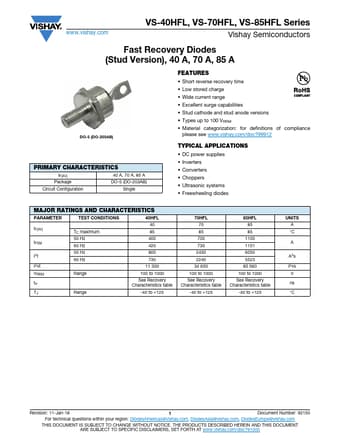

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-40HFL10S05, VS-40HFL
Manufacturer
Vishay ↗
File Size
205.02 KB
Datasheet
VS-40HFL-Vishay.pdf
Description
Fast Recovery Diodes
Note
This datasheet PDF includes multiple part numbers: VS-40HFL10S05, VS-40HFL.
Please refer to the document for exact specifications by model.
