VS-4ECU06-M3 Datasheet - Vishay

Ultrafast Rectifier

VS-4ECU06-M3 Features

* Ultrafast recovery time, reduced Qrr and soft recovery

* 175 °C maximum operating junction temperature

* For PFC CRM/CCM, snubber operation

* Low forward voltage drop

* Low leakage current

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

VS-4ECU06-M3 General Description

APPLICATIONS State of the art ultrafast recovery rectifiers designed with optimized performance of forward voltage drop, ultrafast recovery time, and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability charac.

VS-4ECU06-M3 Datasheet (128.91 KB)

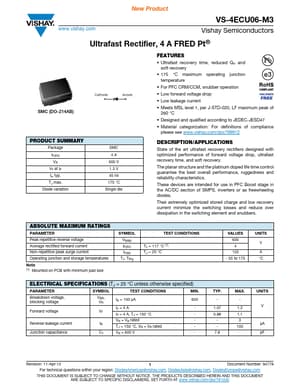

Preview of VS-4ECU06-M3 PDF

Datasheet Details

Part number:

VS-4ECU06-M3

Manufacturer:

Vishay ↗

File Size:

128.91 KB

Description:

Ultrafast rectifier.
www.vishay.com New Product VS-4ECU06-M3 Vishay Semiconductors Ultrafast Rectifier, 4 A FRED Pt® SMC (DO-214AB) Cathode Anode PRODUCT SUMMARY Pa.
