VS-60APU04PbF, VS-60EPU04PbF Datasheet - Vishay

VS-60APU04PbF Ultrafast Soft Recovery Diode

APPLICATIONS These diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for HF welding, power converters and other applications where switc.

VS-60APU04PbF Features

* Ultrafast recovery time

* Low forward voltage drop

* 175 °C operating junction temperature

* Compliant to RoHS Directive 2002/95/EC

* Designed and qualified for industrial level BENEFITS

* Reduced RFI and EMI

* Higher frequency operation

VS-60EPU04PbF-Vishay.pdf

This datasheet PDF includes multiple part numbers: VS-60APU04PbF, VS-60EPU04PbF. Please refer to the document for exact specifications by model.

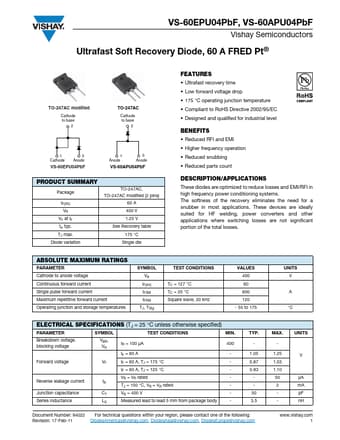

VS-60APU04PbF Datasheet Preview Page 2 VS-60APU04PbF Datasheet Preview Page 3

Datasheet Details

Part number:

VS-60APU04PbF, VS-60EPU04PbF

Manufacturer:

Vishay ↗

File Size:

190.83 KB

Description:

Ultrafast soft recovery diode.

Note:

This datasheet PDF includes multiple part numbers: VS-60APU04PbF, VS-60EPU04PbF.
Please refer to the document for exact specifications by model.
