VS-60CPQ150-N3, VS-60CPQ150PbF, Schottky Rectifier

www.vishay.com VS-60CPQ150PbF, VS-60CPQ150-N3 Vishay Semiconductors Schottky Rectifier, 2 x 30 A Base common cathode 2 3 2 1 TO-247AC PRODUCT SUMM.
The VS-60CPQ150 center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature.

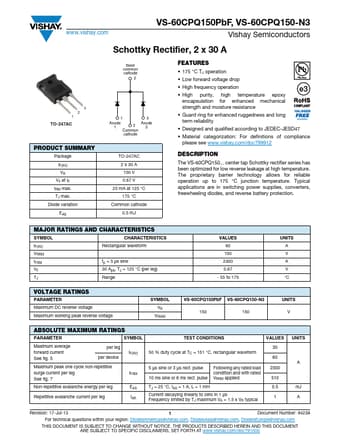

datasheet Preview Page 1 from Datasheet4u.com

VS-60CPQ150PbF-Vishay.pdf

VS-60CPQ150-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-60CPQ150-N3, VS-60CPQ150PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-60CPQ150-N3, VS-60CPQ150PbF

Manufacturer:

Vishay ↗

File Size:

152.91 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-60CPQ150-N3, VS-60CPQ150PbF.
Please refer to the document for exact specifications by model.

Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Availab

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.   MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 30 Apk, TJ = 125 °C (per leg) TJ Range VALUES 60 150 2300 0.67 - 55 to 175
