VS-60EPS12-M3 High Voltage Input Rectifier Diode

High voltage rectifiers optimized for very low forward voltage drop with moderate leakage. These devices are intended for use in main rectification (single or three phase bridge).  MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTIC.

VS-60EPS12-M3 Features

* Very low forward voltage drop

* 150 °C max. operating junction temperature

* Designed and qualified according to JEDEC-JESD47

* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 Available APPLICATIONS

* Input recti

VS-60EPS12-M3 Datasheet (189.34 KB)

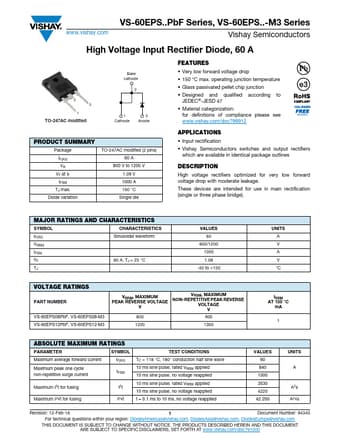

VS-60EPS12-M3 Datasheet Preview — Preview of VS-60EPS12-M3 PDF

Datasheet Details

Part number:

VS-60EPS12-M3

Manufacturer:

Vishay ↗

File Size:

189.34 KB

Description:

High voltage input rectifier diode.
