VS-6F120, VS-6F, Standard Recovery Diodes

www.vishay.com VS-6F(R) Series Vishay Semiconductors Standard Recovery Diodes (Stud Version), 6 A DO-203AA (DO-4) .

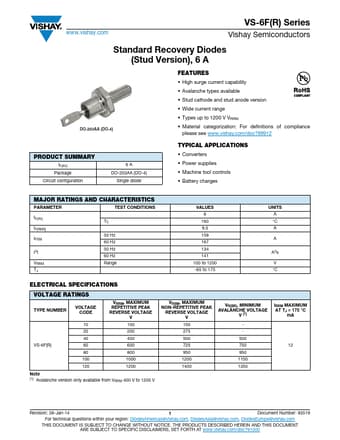

datasheet Preview Page 1 from Datasheet4u.com

VS-6F-Vishay.pdf

VS-6F120 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-6F120, VS-6F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-6F120, VS-6F

Manufacturer:

Vishay ↗

File Size:

137.88 KB

Description:

Standard Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: VS-6F120, VS-6F.
Please refer to the document for exact specifications by model.

Features

* High surge current capability
* Avalanche types available
* Stud cathode and stud anode version
* Wide current range
* Types up to 1200 V VRRM
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 PRODUCT SUMMA

Applications

* Converters
* Power supplies
* Machine tool controls
* Battery charges MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) IF(RMS) IFSM I2t VRRM TJ TC 50 Hz 60 Hz 50 Hz 60 Hz Range VALUES 6 160 9.5 159 167 134 141 100 to 1200 -65 to 175 UNITS A
