VS-80EBU02 Datasheet - Vishay

Ultrafast Soft Recovery Diode

VS-80EBU02 Features

* Ultrafast recovery time

* 175 °C max. operating junction temperature

* Screw mounting only

* Designed and qualified JEDEC®-JESD 47

* PowerTab® package according to

* Material categorization: for definitions of compliance please see www.vishay.

VS-80EBU02 General Description

/ APPLICATIONS These diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for HF welding, power converters and other applications where sw.

VS-80EBU02 Datasheet (138.75 KB)

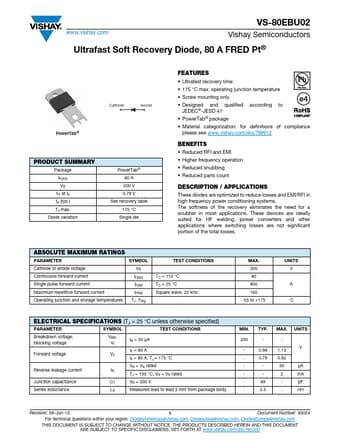

VS-80EBU02 Datasheet Preview — Preview of VS-80EBU02 PDF

Datasheet Details

Part number:

VS-80EBU02

Manufacturer:

Vishay ↗

File Size:

138.75 KB

Description:

Ultrafast soft recovery diode.
www.vishay.com VS-80EBU02 Vishay Semiconductors Ultrafast Soft Recovery Diode, 80 A FRED Pt® Cathode Anode PowerTab® PRODUCT SUMMARY Package IF(.
